Product Descriptions

Product model: 2806KL-04W-B89

Product specifications: 70mm × 70mm × 15mm

Input voltage: DC12V

Working voltage range: DC6V-- 13.8V

Motor speed: 3000 rpm

Input power: 7.8W

Current: 0.65A

Rotation direction: From the rotor, the direction rotates counterclockwise

Wind pressure range i: 24Pa

Bearing structure: maintenance free NMB double ball bearing

Service life: L10 at 25 ° C Expected lifespan of 50000 hours

Insulation level: E-level

Output method: 120MM three wire

Noise index: 26.5

Temperature range: -10 70 ° C

Service life: 80000 hours (in an environment of 25 ℃, 45-85% relative humidity)

Fan frame: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant;

Fan blade: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant;

Fan rotation direction: counterclockwise when viewed from the direction of the fan blades;

Operating temperature: -10 ° C to+70 ° C;

Storage temperature: -40 ° C to+70 ° C;

Bearings: high-precision ball bearings;

Power range: plus or minus 15% of the rated power supply;

Insulation resistance: greater than 500 megaohms;

Voltage withstand: leakage current of 0.5mA 500V/1 minute;

Working life: 80000 hours at an ambient temperature of 25 degrees Celsius, compliant with international environmental standards, GE plastic from the United States, certified for environmental protection

Specifications

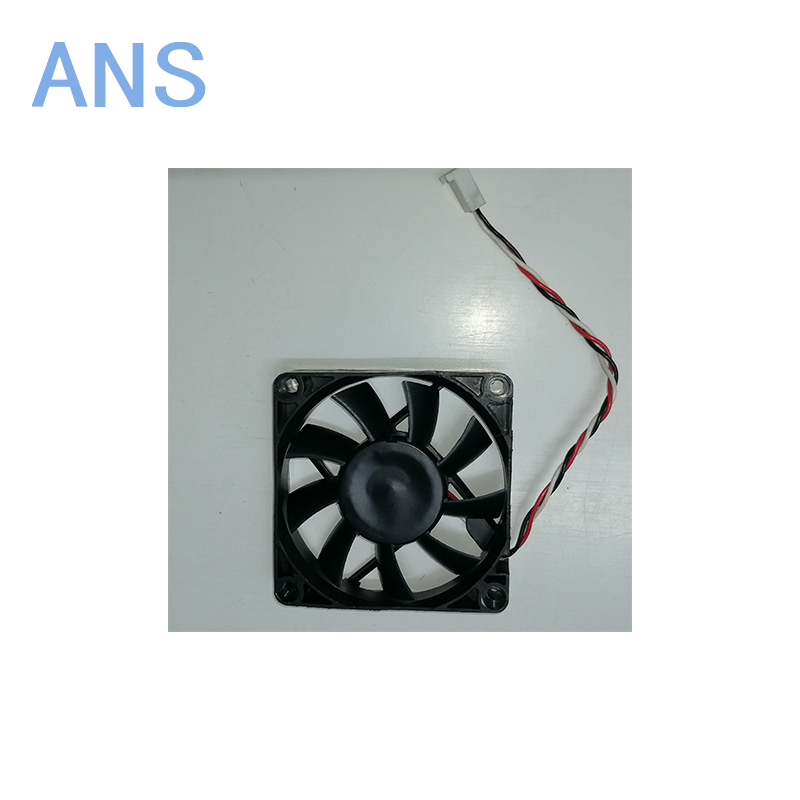

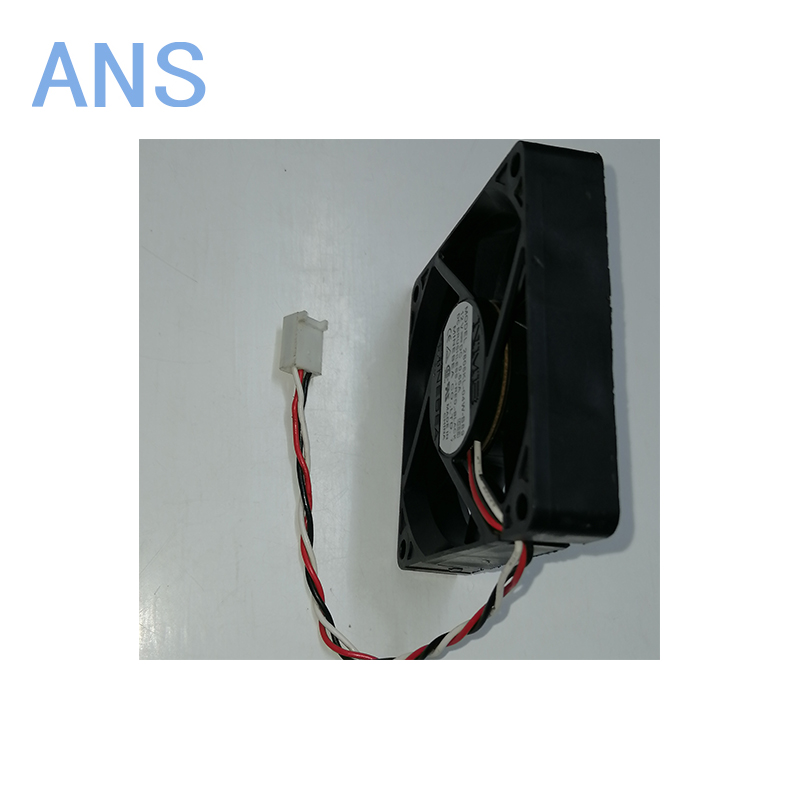

Actual product photos
