Product Description

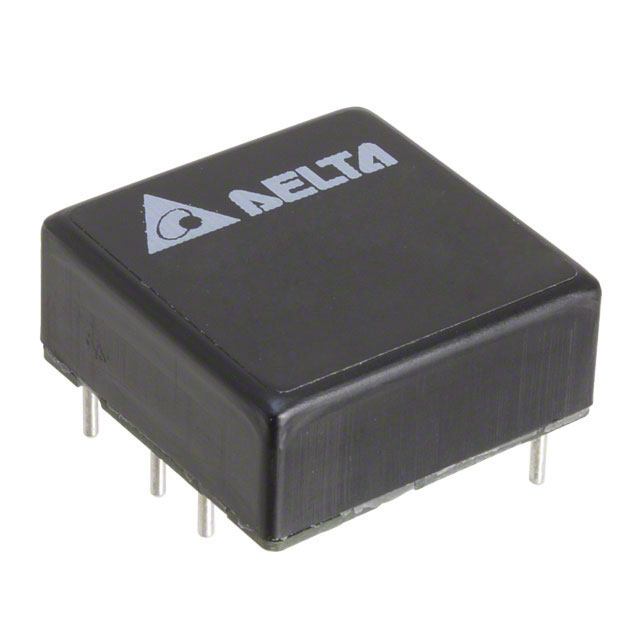

Delta Electronics S24DE150R6NDFA

TYPE
DESCRIPTION
Category
Power Supplies - Board Mount
DC DC Converters
Mfr
Delta Electronics
Series
S24DE (20W)
Package
Tube
Product Status
Active
Type
Isolated Module
Number of Outputs
2
Voltage - Input (Min)
9V
Voltage - Input (Max)
36V
Voltage - Output 1
15V
Voltage - Output 2
-15V
Voltage - Output 3
-
Current - Output (Max)
670mA, 670mA
Power (Watts)
20 W
Voltage - Isolation
1.6 kV
Applications
ITE (Commercial)
Features
Remote On/Off, UVLO
Operating Temperature
-40°C ~ 85°C
Efficiency
88%
Mounting Type
Through Hole
Package / Case
6-DIP Module
Size / Dimension
1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Control Features
Enable, Active Low
Base Product Number
S24DE

TYPE	DESCRIPTION
Category	Power Supplies - Board Mount DC DC Converters
Mfr	Delta Electronics
Series	S24DE (20W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Voltage - Output 3	-
Current - Output (Max)	670mA, 670mA
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, UVLO
Operating Temperature	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Control Features	Enable, Active Low
Base Product Number	S24DE
