Product Descriptions

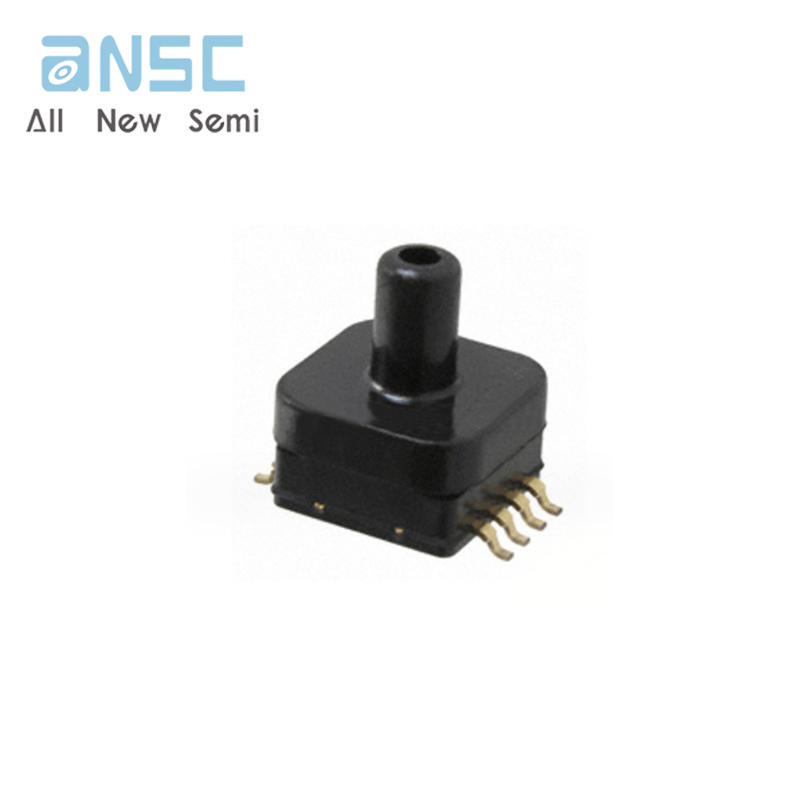

The Freescale MPXHZ6250A series sensor integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output

signal and temperature compensation. The small form factor and high reliability of on-chip integration make the Freescale sensor a logical and

economical choice for automotive system designers.

The MPXHZ6250A series piezoresistive transducer is a state-of-the-art, monolithic, signal conditioned, silicon pressure sensor. This sensor

combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high

level analog output signal that is proportional to applied pressure. Figure 1 shows a block diagram of the internal circuitry integrated on a

pressure sensor chip.

Product Feature

? Improved Accuracy at High Temperature

? Available in Small and Super Small Outline Packages

? 1.5% Maximum Error over 0° to 85°C

? Ideally suited for Microprocessor or Microcontroller-Based Systems

? Temperature Compensated from ?40° to +125°C

? Durable Thermoplastic (PPS) Surface Mount Package Typical Applications

? Industrial Controls

? Engine Control/Liquified Petroleum Gas (LPG)

Product Images

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
