Product Descriptions

The Zynq?-7000 family is based on the Xilinx SoC architecture. These products integrate a feature-rich dual-core or single-core ARM? Cortex?-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.

Product Features

Application Processor Unit (APU)

? 2.5 DMIPS/MHz per CPU

? CPU frequency: Up to 1 GHz

? Coherent multiprocessor support

? ARMv7-A architecture

? TrustZone? security

? Thumb?-2 instruction set

? Jazelle? RCT execution Environment Architecture

? NEON? media-processing engine

? Single and double precision Vector Floating Point Unit (VFPU)

? CoreSight? and Program Trace Macrocell (PTM)

? Timer and Interrupts

? Three watchdog timers

? One global timer

? Two triple-timer counters

Caches

? 32 KB Level 1 4-way set-associative instruction and data caches (independent for each CPU)

? 512 KB 8-way set-associative Level 2 cache (shared between the CPUs)

? Byte-parity support

On-Chip Memory

? On-chip boot ROM

? 256 KB on-chip RAM (OCM)

? Byte-parity support

External Memory Interfaces

? Multiprotocol dynamic memory controller

? 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories

? ECC support in 16-bit mode

? 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

? Static memory interfaces

? 8-bit SRAM data bus with up to 64 MB support

? Parallel NOR flash support

? ONFI1.0 NAND flash support (1-bit ECC)

? 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash

8-Channel DMA Controller

? Memory-to-memory, memory-to-peripheral, peripheral-to-memory,

and scatter-gather transaction support

Specifications

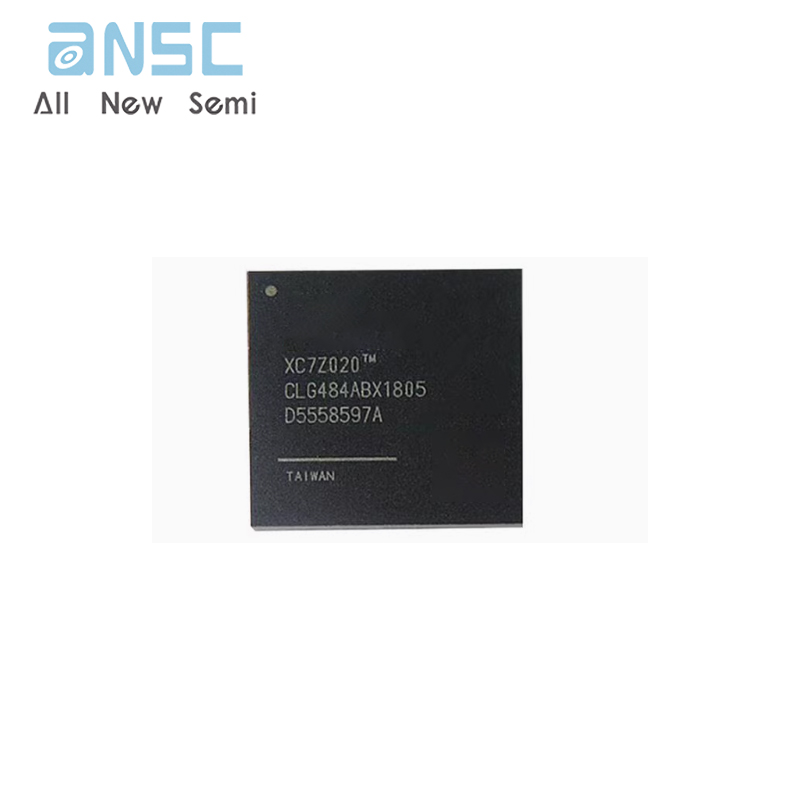

Actual product photos
