Product Descriptions

The TJA1057 is part of the Mantis family of high-speed CAN transceivers. It provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.

The TJA1057 offers a feature set optimized for 12 V automotive applications, with significant improvements over first- and second-generation CAN transceivers from NXP, such as the TJA1050, and excellent electromagnetic compatibility (EMC) performance. The TJA1057 also displays ideal passive behavior to the CAN bus when the supply voltage is off.

Variants with a VIO pin can be interfaced directly with microcontrollers with supply voltages from 3.3 V to 5 V.

The TJA1057 implements the CAN physical layer as defined in ISO 11898-2:2024 third edition and SAE J2284-1 to SAE J2284-5. The TJA1057T is specified for data rates up to 1 Mbit/s. Additional timing parameters defining loop delay symmetry are specified for the other variants. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The TJA1057B and TJA1057C feature shorter propagation delay, supporting larger network topologies.

These features make the TJA1057 an excellent choice for HS-CAN networks that only require basic CAN functionality.

Product Features

? Fully ISO 11898-2:2024, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant1

? Optimized for use in 12 V automotive systems

? Low electromagnetic emission and high electromagnetic immunity, according to EMC standards IEC TS62228 and SAE J2962-2:20192

? AEC-Q100 qualified

? Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant)

? Shorter propagation delay on the TJA1057B and TJA1057C variants supports larger network topologies (see Table 8)

? Variants with a VIO pin allow for direct interfacing with 3.3 V to 5 V microcontrollers. Variants without a VIO pin can interface with 3.3 V and 5 V-supplied microcontrollers, provided the microcontroller I/Os are 5 V tolerant.

? Both VIO and non-VIO variants are available in SO8 and leadless HVSON8 (3.0 mm × 3.0 mm) packages;HVSON8 with improved Automated Optical Inspection (AOI) capability.

Specifications

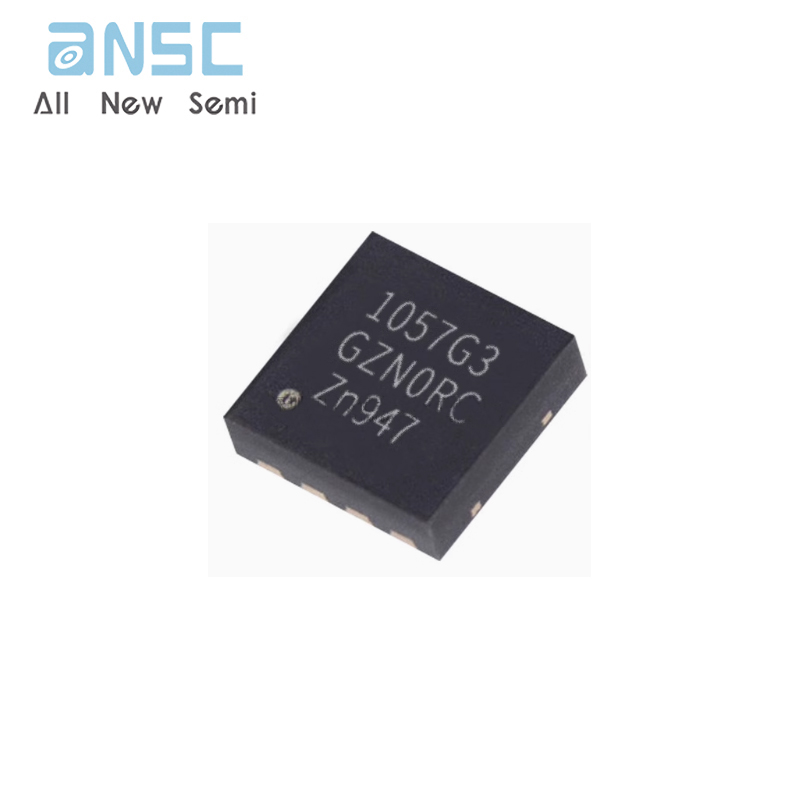

Actual product photos
